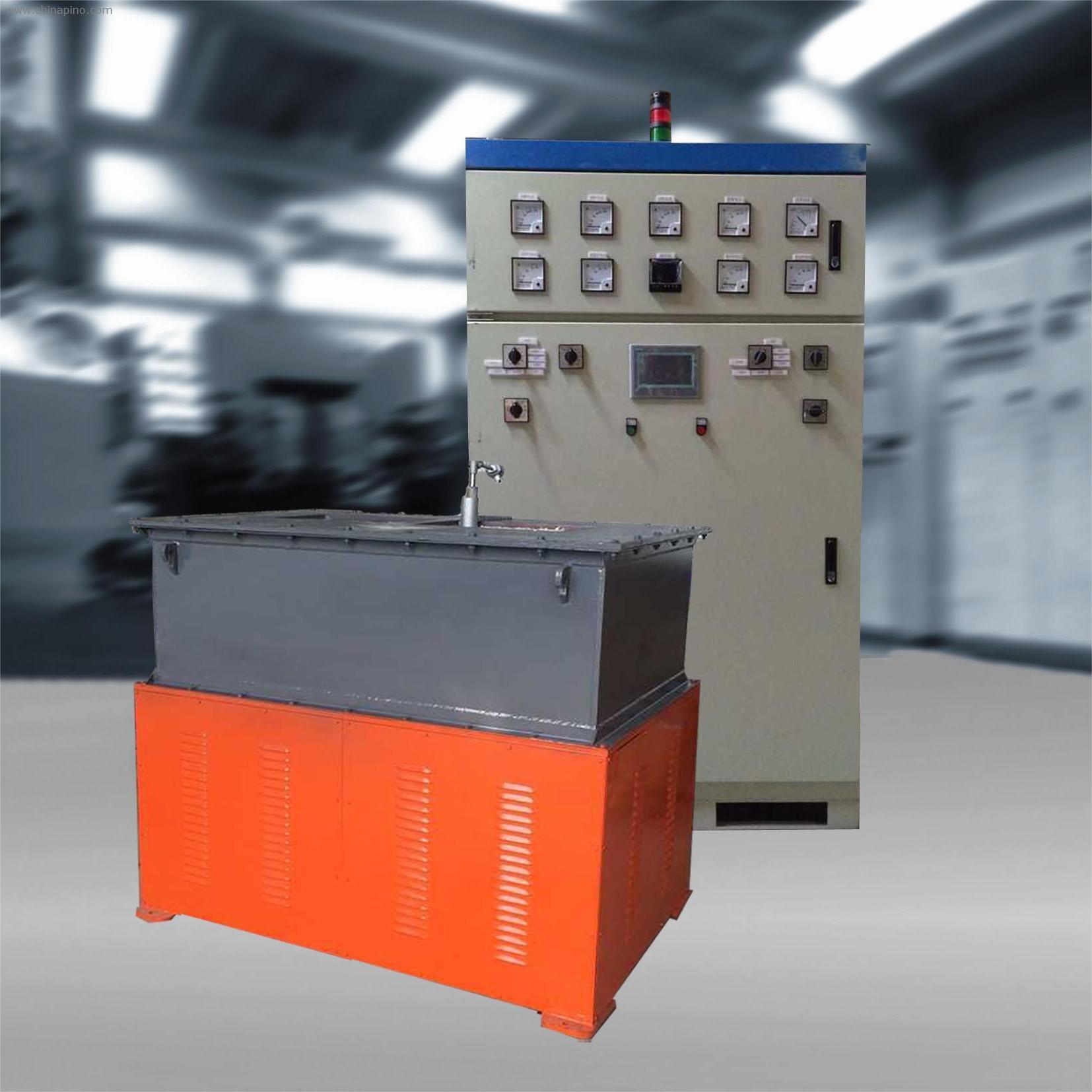

PN3A22-PL-90KW Power Frequency Continuous Electric Furnace

Technical parameters

1. Technical parameters

2. Controlled by a PLC control unit.

3. Operation mode: Manual and automatic

4. Working mode: keep warm at night and work in day.

5. Open furnace mode: open new furnace, working melting, old furnace open mold

6. Water cooling circulation loses supply, it have alarm and power outage function.

7. Electric cabinet transformer overheating, it have alarm and power outage function.

8. Touch screen show faults alarming

9. Pump power: 90KW

10. Voltage:380V

11. Fusion ability:200KG/H

12. Capacity:1000kg

13. Range of regulation: 90～380V

14. Max Fuse temperature :1250 degree

15. Frequency:50HZ

16. Keep warm automatically (monitor constantly), melting and keep warm chamber

control independently.

17. Three colors alarming light

18. Cooling way: water cooling

19. Electric cabinet: 1200*1000*2000mm

20. Furnace body: 1608*1080*1480mm
